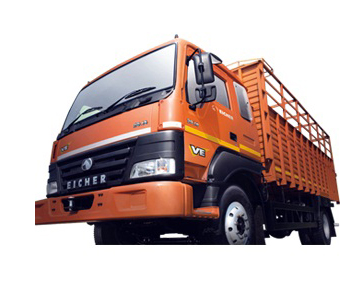

Eicher 20.16

Eicher 20.16 offers the best fuel efficiency in its class with faster turnaround and higher payload capabilities. Delivering the highest HP/litre ratio, the 20.16 is not just mechanically efficient but is also fuel efficient. With 4 wheelbases it is designed to suit various application need of the customer.

APPLICABLE SEGMENT

Cement

Construction

Container

Market Load

Parcel/Logistics

POL Tankers

Voluminous Goods

TECHNICAL SPECIFICATIONS

Wheelbase (mm)	4300/4800/5340/6260
Wheel base - Cargo body Deck Length, mm (Ft)	Fully Built Versions - WB 4300 - 5487 (18); WB 4800 : 6096 (20); WB 5340 : 7315 (24)
Overall Length (mm)	WB 4300 : 7601; WB 4800 : 8666; WB 5340 : 10075; WB 6260 : 12010
Minimum Turning Radius (m)	WB 4300 : 9.15
Ground Clearance (mm)	252
Gross Vehicle Weight (Kgs)	16,200
Payload (Kgs)	9000 - 9700 (FBT)
Engine Type	6 cylinder, water cooled, turbo-charged intercooled DI
Max. Power	108 KW@ 2800 rpm (147 HP)
Max. Torque	48 Mkg @ 1440 rpm
Bore x Stroke (mm)	100 x 105
Clutch	330 mm
Gear Box	5 speed synchromesh gear box of 60 kgm capacity
Rear Axle	Heavy duty fully floating banjo type
Front Axle	Heavy duty forged “I” beam reversed elliot type
Steering	Power steering - with Hydraulic Power Assist, Re-circulating Ball & Nut Type
Frame	‘C’ Channel ladder type- 230x76x6 mm
Suspension	Semi-elliptical laminated leaf springs, Hydraulic double acting telescopic shock absorbers in front only
Brakes	Service Brake: Dual Circuit, Full air,‘S’ cam
Wheels & Tyres	10.00 x 20 – 16 PR / PD
Fuel Tank (Litres)	220/ 395
FDR	6.166
Max Gradeability	23%
Max. Speed	86 Kmph
Electricals	12V, 120Ah
Cabin	Ergonomically designed sleeper cabin, spacious, comfortable, safe and tiltable cabin
Available options	Face Cowl with chassis, Cab with Chassis, Cabin and Built-up body
