SPECIAL APPLICATIONS

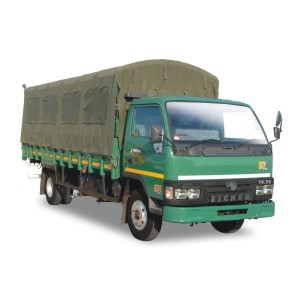

Eicher 10.75 E2 Plus

Troop carriers fall under the 6 tyre range and are 7-9Ton. These are available with both soft top and hard top.


APPLICABLE SEGMENT
  • Army
  • CRPF
  • Defence Services
  • Police
  • TECHNICAL SPECIFICATIONS
    Wheelbase (mm) 4900/5260/6600
    Cargobody Deck Length (Ft) Cowl 4900 WB: 6858(22.5), Fully Built 5260 WB:7315(24), Cowl 4700 WB: 9753(32)
    Overall Length (mm) 8970/9876/12000
    Minimum Turning Radius (m) 8.77/9.2/11.5
    Ground Clearance (mm) 252
    Gross Vehicle Weight (Kgs) 25000
    Payload (Kgs) 17100 (5260 w/b, FBT)
    Engine Type 6 cylinder, water cooled, turbo-charged intercooled DI diesel engine - BS III
    Max. Power 113KW@ 2400 rpm (154 HP)
    Max. Torque 569 Nm @ 1400-1600 rpm
    Bore x Stroke (mm) 100 x 105
    Clutch Single dry plate, Spring loaded Pull type
    Gear Box 6 speed synchromesh gear box of 80 kgm capacity
    Trailing Axle Tag Axle linked with drive axle through Bell Crank mechanism
    Rear Axle Heavy duty fully floating banjo type
    Front Axle Heavy duty forged “I” beam reversed elliot type
    Steering Hydraulic Power Assisted, Re-circulating Ball & Nut Type(Ratio-20.2:1)
    Frame ‘C’ Channel ladder type- 230x76x6 mm with additional 5 mm reinforcement
    Suspension Semi-elliptical laminated leaf springs, with bell crank mechanism in rear, Hydraulic double acting telescopic shock absorbers in front only
    Brakes Service Brake: Dual Circuit, Full air, ‘S’ cam with Auto Slack Adjuster; Parking Brake :Spring brakesacting at rear wheels LH/RH actuated, pneumatic controlled on the rear axle
    Wheels & Tyres 10.00 x 20 – 16 PR
    Fuel Tank (Litres) 395
    FDR 6.428
    Max Gradeability 23%
    Max. Speed 78 Kmph
    Electricals 12V, 120Ah
    Cabin Ergonomically designed sleeper cabin, spacious, comfortable, safe and tiltable cabin
    Available options Cowl with chasis, Cab with Chasis and Built-up
    Tyre 10
    GVW 25,000 KG
    Horse power 154
