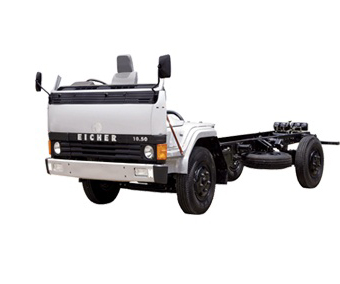

10.50 E Bus RP Chassis

Powerful bus chassis designed for Space, Speed and High Performance for seating capacity upto 24 Seats.


APPLICABLE SEGMENT
  • Route Permit Buses
  • Staff & Contract Carriage
  • TECHNICAL SPECIFICATIONS
    Wheelbase (mm) 3350
    Rear Overhang (mm) 1473
    Front Overhang (mm) - Face 1005
    Front Overhang (mm) - F/L 1033
    Overall chassis Length (mm) - Face 5828
    Overall chassis Length (mm) - F/L 5856
    GVW (kg) 5400
    Steering Manual Steering
    Brakes Hydraulic Brakes
    Type E483 TCI BSIII New Mech Type, E483 TCI BSIV CRDI with New Rating, E 483 CNG BS IV
    Max Power BSIII Mech - 70 Kw @ 3200 rpm, BSIV CRDi - 70 Kw @ 2600 rpm, CNG - 62 Kw @ 3200 rpm
    Max Torque BSIII Mech - 285 Nm @ 1440 rpm, BSIV CRDi - 300 Nm @ 1600-1800 rpm, CNG - 229.5 Nm @ 1600 rpm
