Blue Metal

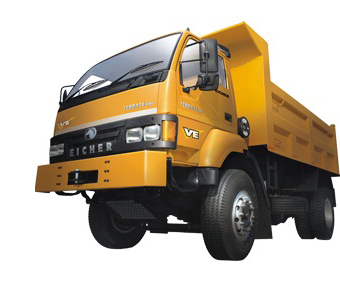

Terra16 is the 16,200 GVW Tipper from Eicher and is called the 'Solid Performer' by the customers. It is a leader when it comes to blue metal, sand, secondary transportation of coal etc. Shortest turning diameter, highly fuel efficient, rugged body paired to a strong driveline all make the Terra16 a Solid Performer in all sense.

  • Blue Metal
  • Coal
  • Iron ore
  • Land Filling
  • Overburden removal
  • Sand
  • Stones
    Wheelbase (mm) 3485
    Body Capacity 8.5 Cu.m
    Overall Length (mm) 6225
    Minimum Turning Radius (m) 7.015
    Ground Clearance (mm) 252
    Gross Vehicle Weight (kgs) 16,200
    Engine Type 6 cylinder, water cooled,turbo-charged intercooled DI; diesel engine - BS III
    Max. Power 108 KW@ 3200 rpm (147 HP)
    Max. Torque 471 Nm @ 1440rpm
    Bore x Stroke (mm) 100 x 105
    Clutch 330 mm
    Gear Box 5+1 speed synchromesh gear box of 60 kgm capacity
    Rear Axle Heavy duty fully floating banjo type
    Front Axle Heavy duty forged "I" beam reversed elliot type
    Steering Hydraulic Power Assisted, Re-circulating Ball & Nut Type
    Frame 'C' Channel ladder type- 285x76x6mm
    Suspension Semi-elliptical laminated leaf springs, Hydraulic double acting telescopic shock absorbers in front only
    Brakes Service Brake: Dual Circuit, Full air,'S' cam; Parking Brake: Spring brakes acting at rear wheels LH/RH actuated
    Wheels & Tyres 10.00 x 20 - 16 PR
    Fuel Tank (litres) 220
    FDR 6.833
    Max Gradeability 27%
    Max. Speed 78 Kmph
    Electricals 12V, 120Ah
    Cabin Ergonomically designed day cabin, spacious, comfortable, safe and tiltable cabin with molded roof liner.
    Available options Cab & Chasis and Fully Built-up
