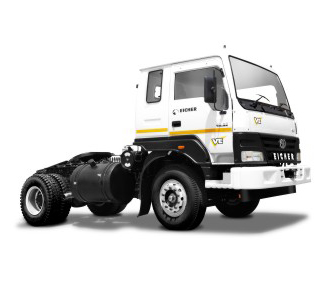

Eicher 40.35

Eicher 40.35 the 35200 kgs. GCW Articulated Tractor powered by well known Eicher Engine Technology now synonymous with better mileage, comes fitted with best in class and heavy duty aggregates making it a reliable product with easy maintenance.

  • Car Carriers
  • Cement
  • Container
  • LPG Bullets
  • Tanker
    Wheelbase (mm) 3485
    Cargobody Deck Length, mm (Ft) NA
    Overall Length (mm) 5905 (prime mover)
    Minimum Turning Radius (m) NA
    Ground Clearance (mm) 252
    Gross Vehicle Weight (Kgs) 35200
    Payload (Kgs) 24000 kgs. when coupled with suitable double axle trailer
    Engine Type Eicher Common Rail System
    Max. Power 125KW@ 2400 rpm
    Max. Torque 600Nm @ 1400-1600 rpm
    Bore x Stroke (mm) 100X105
    Clutch 352 dia. push type with 4 inch clutch booster
    Gear Box ET-80 , 6 Speed Synchromesh
    Rear Axle Meritor RS-160, Banjo type fully floating
    Front Axle Heavy duty forged "I" beam reversed elliot type
    Steering Hydraulic Power Assisted, Re-circulating Ball & Nut Type with 500 mm dia steering wheel
    Frame 'C' Channel ladder type- 285x76x6 mm with additional 5 mm reinforcement
    Suspension Semi-elliptical laminated leaf springs at front & rear Hydraulic double acting telescopic shock absorbers in front axles only
    Brakes Service Brake: Dual Circuit, Full air, 'S' cam with ABS; Parking Brake :Spring brakes acting on rear wheel
    Wheels & Tyres 10.00 x 20 - 16 PR
    Fuel Tank (Litres) 415
    FDR 6.83
    Max Gradeability 18%
    Max. Speed 67 Kmph
    Electricals 2X12V
    Cabin Hyraulic Semi suspended Cabin
