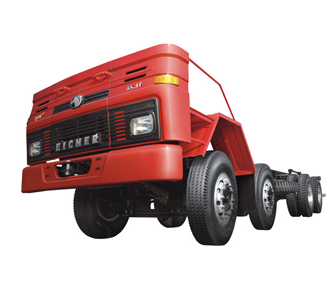

Eicher 35.31

Eicher 35.31 is a value enhanced product and is the first 12 tyre truck, introduced in India. IT has also received the award for the CV Technology of the Year from NDTV. The innovative design consists of Twin Steered axles which gives better steer-ability and longer life to the tyres. The load distribution in this arrangement is even.

  • Cement
  • Coal
  • Construction
  • Container
  • Market Load
  • Parcel/Logistics
  • POL Tankers
  • Steel & Iron Ore
    Wheelbase (mm) 4700
    Cargobody Deck Length (Ft) Fully Built Up: 7315(24)
    Overall Length (mm) CWC- 9350
    Minimum Turning Radius (m) 10.35
    Ground Clearance (mm) 252
    Gross Vehicle Weight (Kgs) 31000
    Payload (Kgs) 21,000 - 22,000 (FBT)
    Engine Type 6 cylinder, water cooled,turbo-charged intercooled DI; diesel engine - BS III
    Max. Power 113KW@ 2400 rpm (154 HP)
    Max. Torque 569 Nm @ 1400-1600 rpm
    Bore x Stroke (mm) 100 x 105
    Clutch Single dry plate, Spring loaded Pull type
    Gear Box 6 speed synchromesh gear box of 80 kgm capacity
    Trailing Axle Tag Axle linked with drive axle through Bell Crank mechanism
    Rear Axle Heavy duty fully floating banjo type
    Front Axle Heavy duty forged “I” beam reversed elliot type, twin steered front axles
    Steering Power Steering, Hydraulic Power Assisted, Re-circulating Ball & Nut Type(Ratio-20.2:1)
    Frame ‘C’ Channel ladder type- 285x76x6 mm with additional 5 mm reinforcement
    Suspension Semi-elliptical laminated leaf springs,with bell crank mechanism in rear, Hydraulic double acting telescopic shock absorbers in front axles only
    Brakes Service Brake: Dual Circuit, Full air,‘S’ cam with Auto Slack Adjuster; Parking Brake: Spring brakesacting at rear wheels LH/RH actuated, pneumatic controlled on the rear axle
    Wheels & Tyres 10.00 x 20 - 16 PR
    Fuel Tank (Litres) 395-CWC, 415 -FBT & CBC
    FDR 6.428
    Max Gradeability 18%
    Max. Speed 77 Kmph
    Electricals 12V, 120Ah
    Cabin Ergonomically designed sleeper cabin, spacious, comfortable, safe and tiltable cabin
    Available options Cowl with chasis, Cab with Chasis and Built-up
