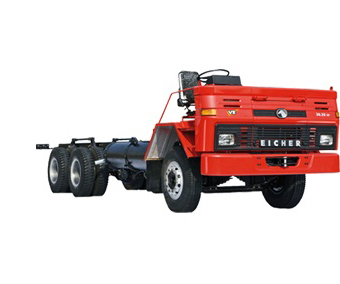

Eicher 30.25 XP

The XP in the Eicher 30.25 XP signifies Xtra Power. With Mileage and Uptime along with the best Payload capacity in mind, the 30.25 XP out performs, delivering the best business model. The longer wheel base model, XPL is a truck developed exclusive for voluminous goods transport.

APPLICABLE SEGMENT

Cement

Coal

Construction

Container

Market Load

Parcel/Logistics

POL Tankers

Steel & Iron Ore

TECHNICAL SPECIFICATIONS

Wheelbase (mm)	4900/5260/6600
Cargobody Deck Length (Ft)	Cowl 4900 WB: 6858(22.5), Fully Built 5260 WB:7315(24), Cowl 4700 WB: 9753(32)
Overall Length (mm)	8970/9876/12000
Minimum Turning Radius (m)	8.77/9.2/11.5
Ground Clearance (mm)	252
Gross Vehicle Weight (Kgs)	25000
Payload (Kgs)	17100 (5260 w/b, FBT)
Engine Type	6 cylinder, water cooled, turbo-charged intercooled DI diesel engine - BS III
Max. Power	113KW@ 2400 rpm (154 HP)
Max. Torque	569 Nm @ 1400-1600 rpm
Bore x Stroke (mm)	100 x 105
Clutch	Single dry plate, Spring loaded Pull type
Gear Box	6 speed synchromesh gear box of 80 kgm capacity
Trailing Axle	Tag Axle linked with drive axle through Bell Crank mechanism
Rear Axle	Heavy duty fully floating banjo type
Front Axle	Heavy duty forged “I” beam reversed elliot type
Steering	Hydraulic Power Assisted, Re-circulating Ball & Nut Type(Ratio-20.2:1)
Frame	‘C’ Channel ladder type- 230x76x6 mm with additional 5 mm reinforcement
Suspension	Semi-elliptical laminated leaf springs, with bell crank mechanism in rear, Hydraulic double acting telescopic shock absorbers in front only
Brakes	Service Brake: Dual Circuit, Full air, ‘S’ cam with Auto Slack Adjuster; Parking Brake :Spring brakesacting at rear wheels LH/RH actuated, pneumatic controlled on the rear axle
Wheels & Tyres	10.00 x 20 – 16 PR
Fuel Tank (Litres)	395
FDR	6.428
Max Gradeability	23%
Max. Speed	78 Kmph
Electricals	12V, 120Ah
Cabin	Ergonomically designed sleeper cabin, spacious, comfortable, safe and tiltable cabin
Available options	Cowl with chasis, Cab with Chasis and Built-up
Tyre	10
GVW	25,000 KG
Horse power	154
