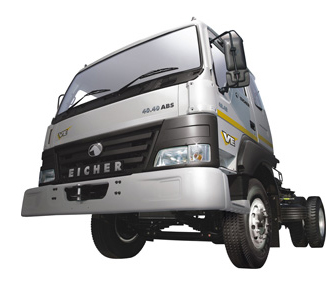

EICHER 40.40

On the basis of the intensive and extensive research done by VECV, the Eicher 40.40 was designed to offer to its owners unmatched performance. The research results have been used to identify the key performance needs of the customers and evolve a suitable Articulated Tractor Platform that is true to the needs of the tractor trailer segment.

  • Cement
  • Container
  • Steel & Iron Ore
  • Tanker
    Engine type Cummins B 5.9 180 31
    Emission norms BS III
    Max Power 136.75 Kw @ 2500 rpm (183.3 HP)
    Max Torque 685 Nm @ 1500 rpm (69.8 Kgm)
    Clutch Single plate dry friction type, 380 mm dia.
    Gearbox ET 80 S6 (6 forward and 1 reverse)
    Rear axle) Heavy duty fully floating banjo type
    Front axle Heavy duty forged '|' beam reverse Elliot type
    Steering Hydraulic power assisted, re-circulated ball and nut type
    Frame dimensions 285 mm. x 76 mm. x 6 mm.
    Suspension Semi-elliptical laminated leaf springs at front and rear; Hydraulic double-acting telescopic shock absorbers in front only
    Brakes Service brake: Dual-circuit, full air 'S' cam with ABS; Parking brake: Spring brake acting on rear wheels
    Maximum speed 70 Kmph
    Maximum grade ability 18.30%
    Wheels and tyres 10.00 x 20 - 16 PR
    5th wheel coupling SAE 2 "–Mark II (Ashley)"
    Fuel tank capacity 370 Ltrs
    Electricals 2 x 12 V
    Battery 24 V, 120 Ah
    Wheelbase 3485 mm.
    OAL (CBC) 5925 mm.
    OAW (CBC) 2450 mm.
    OAH (CBC) 5675 kgs
    GCW 40200 kgs
