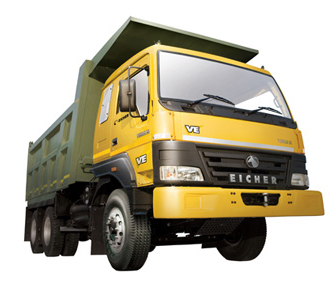

Eicher Terra 25

Tough means strong. Tough means resilient. Tough means having a great capacity to endure. Tough means Eicher terra 25. Living up to the reputation of being the toughest tipper is no easy job. Eicher Terra 25 is a 25 Ton GVW construction tipper that has been engineered for tough terrains and conditions.

  • Blue Metal
  • Coal
  • Crusher-outbound
  • Sand
  • Stones
    Wheelbase (mm) 4000
    Body Capacity 14CuM
    Overall Length (mm) Fully Built: 7590
    Minimum Turning Radius (m) 7.9
    Ground Clearance (mm) 252
    Gross Vehicle Weight (kgs) 25,000
    Engine Type Cummins B5.9 BS3
    Max. Power 136.75 Kw @ 2500 rpm ( 183.3 HP)
    Max. Torque 685 Nm @ 1400 rpm ( 69.8 KgM)
    Clutch Single Plate Dry Push Type, 380 mm with Clutch Booster
    Gear Box 6 speed synchromesh gear box of 80KgM capacity
    Rear Axle Heavy duty fully floating banjo type
    Front Axle Heavy duty forged "I" beam reversed elliot type
    Steering Hydraulic Power Assisted, Re-circulating Ball & Nut Type
    Frame 'C' Channel ladder type- 285x76x7mm with 6 mm full length stiffner
    Suspension Semi-elliptical laminated leaf springs, Hydraulic double acting telescopic shock absorbers in front only
    Brakes Service Brake: Dual Circuit, Full air,'S' cam; Parking Brake: Spring brakes acting at rear wheels LH/RH actuated; Exhaust Brake available
    Wheels & Tyres 10.00 x 20 - 16 PR
    Fuel Tank (litres) 220
    FDR 6.833 / 6.166
    Max Gradeability 27% / 24%
    Max. Speed 78 Kmph
    Electricals 24V
    Cabin Ergonomically designed sleeper cabin, spacious, comfortable, safe and tiltable cabin with molded roof liner.
    Available options Fully built up with 14CuM box type body
