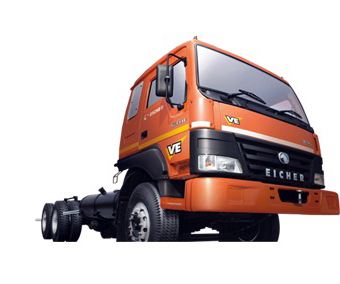

Eicher 30.25 FE

Eicher 30.25 FE is the most Fuel Efficient multi-axle in the market. This has been made possible by advanced engineering that optimizes the entire drive train, the engine, gear box and axle for a better fuel mileage. The model has been built with strong and durable aggregates which ensure high vehicle reliability.


APPLICABLE SEGMENT
  • Cement
  • Coal
  • POL Tankers
  • Steel & Iron Ore
  • TECHNICAL SPECIFICATIONS
    Wheelbase (mm) 4900/5260
    Cargobody Deck Length (Ft) 6858(22.5),7315(24)
    Overall Length (mm) 8970/9876
    Minimum Turning Radius (m) 8.77/9.2
    Ground Clearance (mm) 252
    Gross Vehicle Weight (Kgs) 25000
    Payload (Kgs) 17100(5260 w/b Fully Built Up)
    Engine Type 6 cylinder, water cooled,turbo-charged intercooled DI
    Engine performance BS III
    Max. Power 113KW @ 2600 rpm (154 HP)
    Max. Torque 569 Nm @ 1440 rpm
    Bore x Stroke (mm) 100 x 105
    Clutch Single dry plate, Spring loaded Pull type
    Gear Box 6 speed synchromesh gear box of 80 kgm capacity
    Trailing Axle Tag Axle linked with drive axle through Bell Crank mechanism
    Rear Axle Heavy duty fully floating banjo type
    Front Axle Heavy duty forged “I” beam reversed elliot type
    Steering Hydraulic Power Assisted, Re-circulating Ball & Nut Type(Ratio-20.2:1)
    Frame ‘C’ Channel ladder type- 230x76x6 mm with additional 5 mm reinforcement
    Suspension Semi-elliptical laminated leaf springs,with bell crank mechanism in rear, Hydraulic double acting telescopic shock absorbers in front only
    Brakes Service Brake: Dual Circuit, Full air,‘S’ cam with Auto Slack Adjuster. Antilock Braking System option available; Parking Brake: Spring brakesacting at rear wheels LH/RH actuated, pneumatic controlled on the rear axle
    Wheels & Tyres 10.00 x 20 - 16 PR
    Fuel Tank (Litres) 395
    FDR 5.857
    Max Gradeability 21%
    Max. Speed 80 Kmph
    Electricals 12V, 120Ah
    Cabin Ergonomically designed sleeper cabin, spacious, comfortable, safe and tiltable cabin
    Available options Cowl with chasis, Cab with Chasis and Built-up
